Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Deflecto or OEM |
| Certification: | UL, ISO |
| Model Number: | 10A250300 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500 Pcs |
| Price: | Ask for Details |
| Packaging Details: | Shrink wrap and regular carton box. |
| Delivery Time: | About 20 days after receiving down payment. |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 pcs per Week |
|
Detail Information |
|||
| Product Name: | Ducting Dryer Vent Hose Aluminium | Diameter: | 10'', 250 MM |
|---|---|---|---|
| Feature: | Flexible , Easy Installation | Length: | 3 Meters 10 Ft |
| Product Name: | Custom Hvac System Ex[andable Semi Rigid Aluminum Flexible Round Duct | Thickness: | 0.1 MM,100Mu |
| Certification: | UL | Application: | Exhaust Steam, Smoke |
| High Light: | 25MM Aluminium Foil Flexible Duct,100Mu Aluminium Foil Flexible Duct,Aluminium Foil Ducting Dryer Vent Hose |
||
Product Description

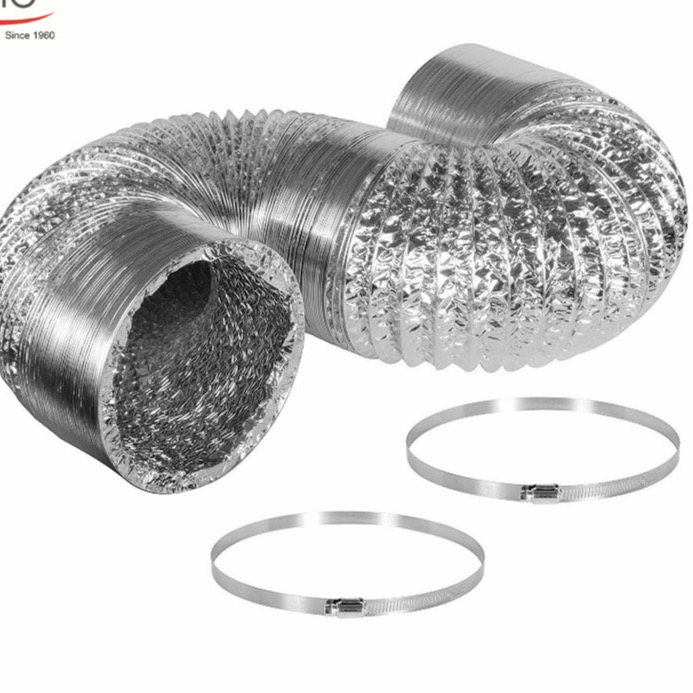

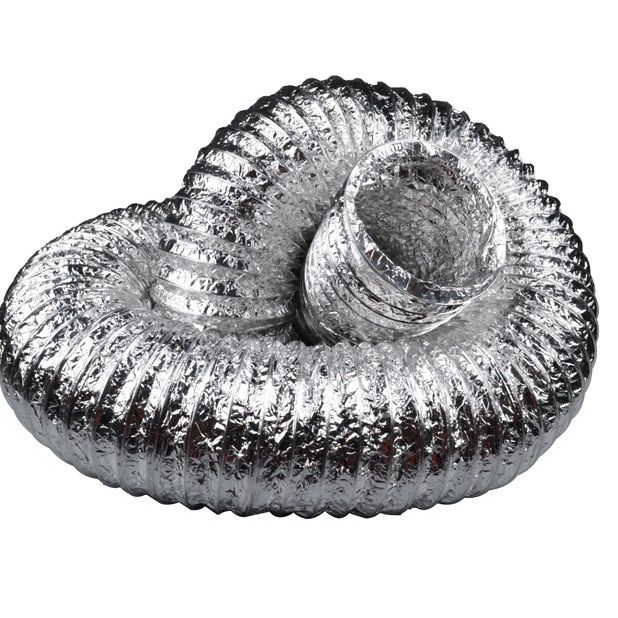

Ducting Dryer Vent Hose Aluminium Foil Flexible Duct For Ventilation
Product details
Semi-rigid duct is made out of aluminum and can be bent to allow for curves and offsets in the duct run. While it is best to use rigid duct from the dryer to the wall termination, clearance issues may require the use of semi-rigid duct. Semi-rigid duct may also be used as a temporary connection until you can install rigid duct. It is a much better choice than flexible ducting as it will not collapse on itself and the inside is smoother which prevents trapping and buildup of lint.
transition ducts are pretty short and sweet.
1. Transition ducts must be a single length. This means no connecting sections together.
2. Transition ducts cannot be concealed within construction. That means no passing through walls, floors, hidden spaces, etc.
3. Transition ducts must be listed and labeled in accordance with UL 2158A, and they cannot be longer than 8 feet.
4. This last one seems to be a moot point because dryer transition ducts can't be UL 2158A listed if they're more than 8 feet long (at least I'm pretty sure about that, but I don't own those standards to verify).
| Type | SEMI Rigid Flexible |
| Fire resistance | Non-combustible |
| Construction | 1 ply aluminium |
| Nominal Thickness | 90 micron |
| Available Diameters | Φ80mm-Φ800mm |
| Temperature Range | -25°c/+250°c |
| Air Velocity | 25m/s(max) |
| Operatng Pressure | 2000Pa |
| Standard Length | 2 m/ 3 m / 4 m / 6 m |
| Compression Ratio |
1/4 |
1. 30% thicker material is used in manufacturing to offer greater strength and temperature rating.
2. Supplied in a compressed length this form of flexible ducting has a unique expanding design that offer efficient venting, as it holds it’s shape and full diameter, even when bends are applied.
3. Ideal for straight and indirect venting installations for clothes dryers, range hoods, bathrooms, and other general venting applications.
| 1.Thickness | 0.1 mm |
| 2. Fire Resistant | Temperature Rate: From -70℃ to 250℃ |
| 3. Tensile Test | Semi Rigid Duct Reminds the same after 24 Hrs 11KG Tensile Test |
| 4. Corrugation | 4 |
1.Are you a direct manufacturer or a trading company?
We are a factory located in Foshan City, we are found in 1998.
2.Can I have my logo on the product or the package?
Yes. OEM Available. The pakcaging is customized if needed.
3.What is your delievery time?
The production lead time is around 15 days.
4.What is the shipping port?
We ship the goods via Shunde port.
5.What is your payment terms?
We accept 30% T/T in advance,70% before shipment.
6.Can I get some samples?
Yes, We'd like to offer free samples , you only need to pay for the express cost.
