6 Inch Bathroom Ventilation Fan Exhaust Square Mounted

Product Details:
Place of Origin: China
Brand Name: No logo or OEM
Certification: CCC, CE Quality
Model Number: HQ-150-6L
Payment & Shipping Terms:
Minimum Order Quantity: 500 Pcs
Price: Negotiation
Packaging Details: With Individual Inner Box.
Delivery Time: About 20 days after receiving down payment.
Payment Terms: L/C, T/T
Supply Ability: 10000 pcs per Week

Detail Information

Type: Axial Flow Fan Product Name: Bathroom Ventilation Fan
Electric Current Type: AC Certification: CE, CCC, ROHS
Material: ABS Plastic Air Pressure: 51-56Pa
Color: White Or Customization Advantage: Overheating Protection
High Light:

ROHS Bathroom Ventilation Fan


56Pa Square Bathroom Ventilation Fan


34dB wall mount bathroom fan

Product Description

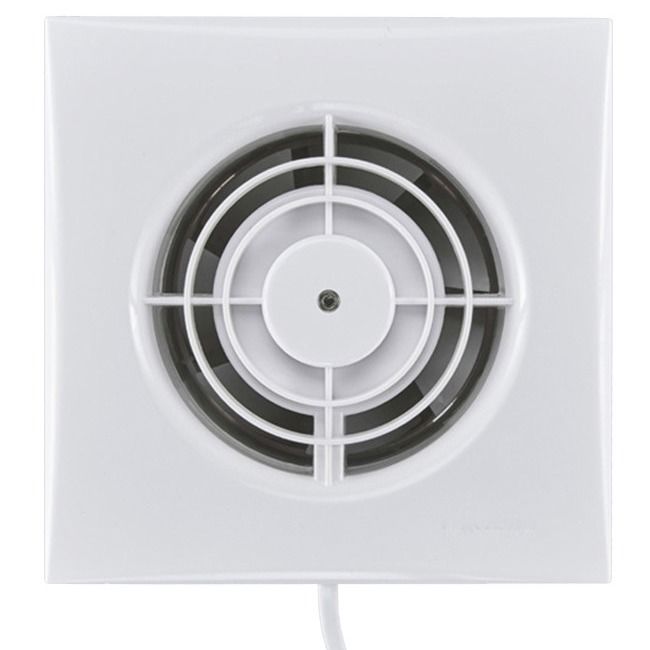

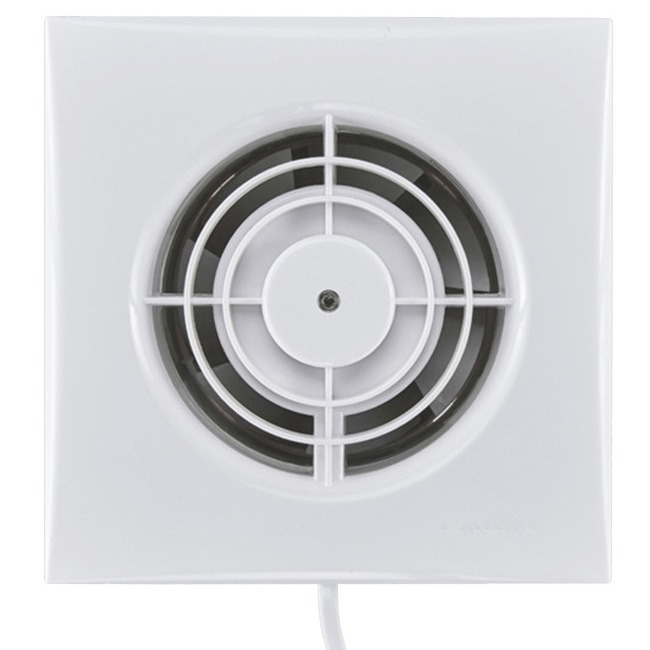

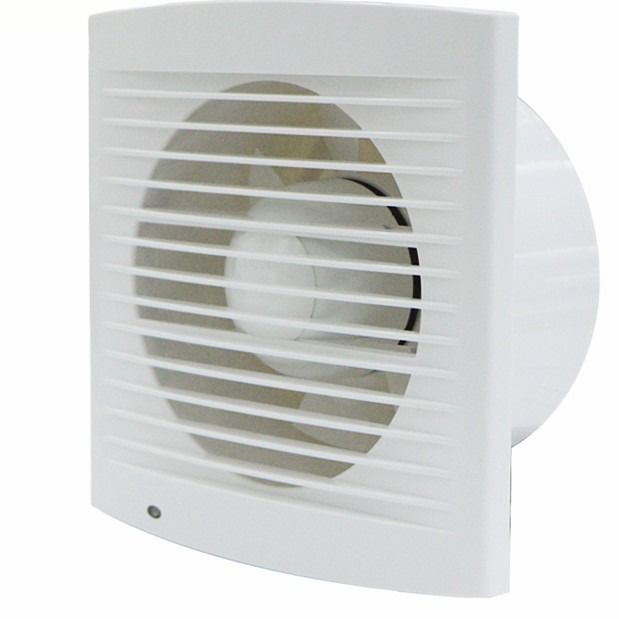

6 Inch Bathroom Ventilation Fan Exhaust Small Square Mounted


Product Name:


Ventilation Air Venting Fan Low Noice Extractor Fan 6 Inches


Modern design and good looking, the unit provides continuous and quiet ventilation to allow speedy reduction of humidity levels and avoid mildew and mould growth. Paremeters: Air flow 160 CFM, Power:25w, Voltage: 110v
Durable material:

Fan frame and blade are made of high quality durable ABS plastic,UV resistant, makes it high efficiency working and long working life. Effective, extremely quiet ventilation clears humidity and odors quickly
Whisper quiet:

Hon&Guan used silent-clever technology with only 0.8 sone, continuous or periodic exchaust ventilation area such as bathroom, showers, kitchens and other spaces.
Energy saving:

It has reliable low power consumption, power:25W, continuous operation, and the protection class is IP34.
Easy installation:

The fans can be directly mounted into the ventilation shaft also suitable for ceiling mounting, just fix the fan to wall by self-tapping screws. With plug.Front panel dimension:205*205*14mm; Back duct dimension 150*150*125mm




Item Model Rated voltage /frequency Power Noice Air volume Diameter Motor Rotation
Window/ Wall Extractor Air Fan HQ-100-4L 220~240V/50HZ 12W 34dB 130m³/h 4'' 100mm 2400r/min
HQ-150-6L 220~240V/50HZ 18W 35dB 320m³/h 6'' 150mm 2000r/min




1. The fan is suitable for wall/window/ ceiling mounting.
2. Shutter, ring are optional, ring is needed for window mounting.
3. Easy installation
4. Shaded pole motor with thermo cut-off
5. Ball bearing motor to reduce friction for long life operation
6. Modern and functional design
7. Front louver for safety protection
8. Safety design based on IEC requirements


Benefits of a Bathroom Exhaust Fan

1. Eliminate Odors
One of the main reasons for having an exhaust fan is for odor control. If an unpleasant odor occurs in the bathroom, it can easily be drawn out with the help of an exhaust fan.
As a result, the ventilation system will enable you to keep your bathroom well maintained, while offering a clean atmosphere for the next person.
2. Humidity Reduction
Reducing the humidity in a bathroom is vital for its upkeep. Excessive moisture can wreak havoc on bathroom walls by causing paint and wallpaper to peel. In extreme cases, it can even cause doors to warp!
Most importantly, the humidity can cause mold to accumulate. These spores can grow rapidly and can be difficult to get rid of. Therefore, it is crucial to have bathroom exhaust fans to prevent this from happening.
3. Reduce Airborne Contaminants
Bathrooms are typically cleaned with aggressive chemicals, which can cause a variety of health issues when inhaled. This is a major concern especially for small children, the elderly, or those with current lung conditions.
Additionally, if the bathroom is already experiencing a mold problem, the fan will help to remove the buildup of spores in the air. This, in turn, will also help to slow down the mold's growth rate.
4. Help Eliminate Foggy Mirror Syndrome
Bathroom exhaust fans will help control the moisture and remove water vapor on your mirrors and walls.


6 Inch Bathroom Ventilation Fan Exhaust Square Mounted 06 Inch Bathroom Ventilation Fan Exhaust Square Mounted 16 Inch Bathroom Ventilation Fan Exhaust Square Mounted 26 Inch Bathroom Ventilation Fan Exhaust Square Mounted 3




1. Are you a direct manufacturer or a trading company?
We are a factory located in Foshan City, we are found in 1998.
2. Can I have my logo on the product or the package?
Yes. OEM Available. The pakcaging is customized if needed.
3. What is your delievery time?

The production lead time is around 15 days.

4. What is the shipping port?
We ship the goods via Shunde port.
5. What is your payment terms?
We accept 30% T/T in advance,70% before shipment.
6. Can I get some samples?
Yes, We'd like to offer free samples , you only need to pay for the express cost.
