Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Deflecto |
Certification: | UL, ISO |
Model Number: | 8A |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1000 Meters |
Price: | USD $0.5 - $ 0.8/ Meter |
Packaging Details: | Shrink wrap and regular carton box. |
Delivery Time: | About 20 days after receiving down payment. |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000 Meter/Meters per Week. |
Detail Information |
|||
Product Name: | Semi Rigid Flexible Ducting | Material: | Aluminum |
---|---|---|---|
Thickness: | 0.08 Mm, From 0.08mm To 0.2 Mm | Length: | 2 ,4 ,6 Meters Or As Demand |
Temperature Range: | -70℃ To 250 ℃ | Tensile Test: | 24 Hrs Without Cracking Nor Breakage. |

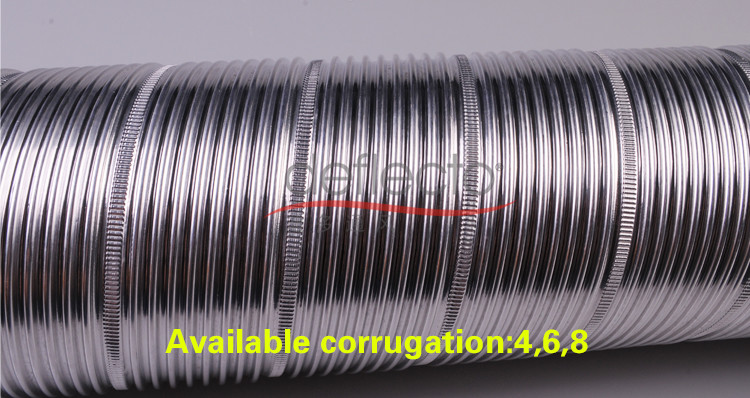

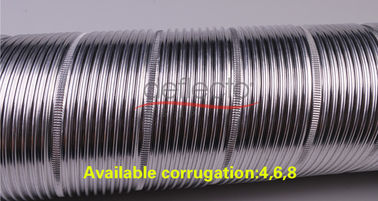

Corrugation: | 4 | Package: | Shrink Wrap And Master Carton |
High Light: | semi rigid flexible aluminum duct,fire resistant flexible ducting |
Product Description

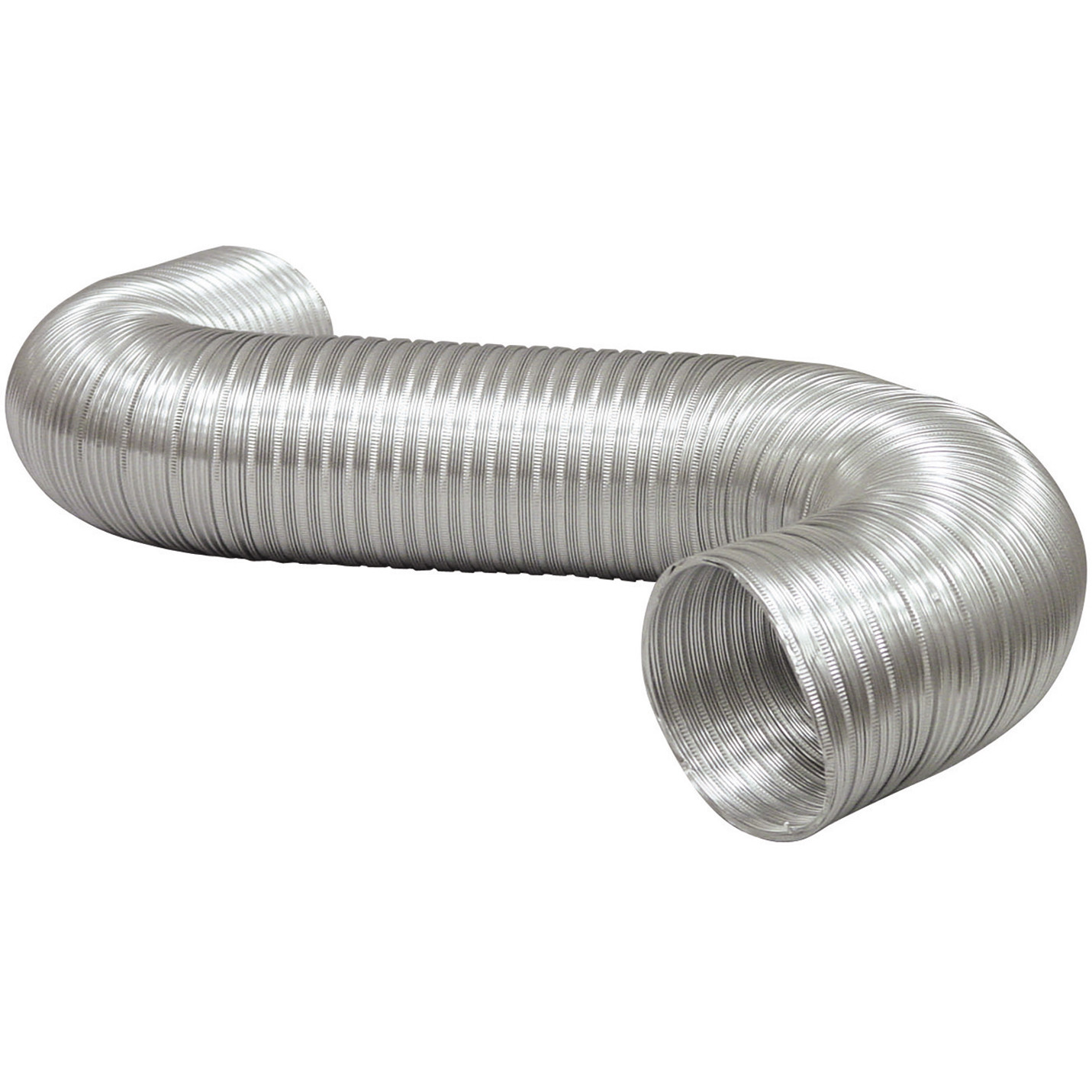

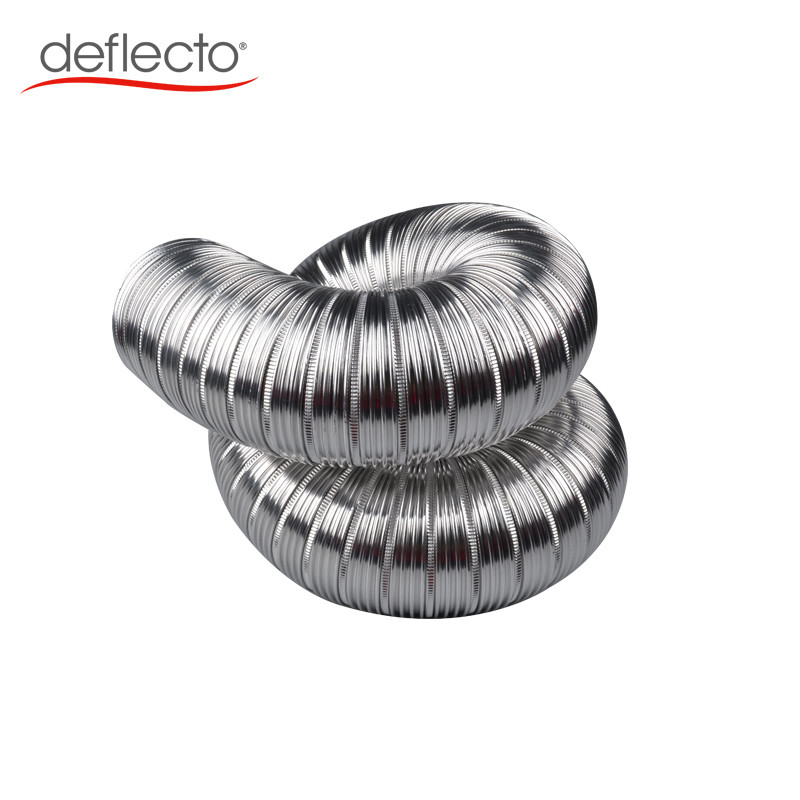

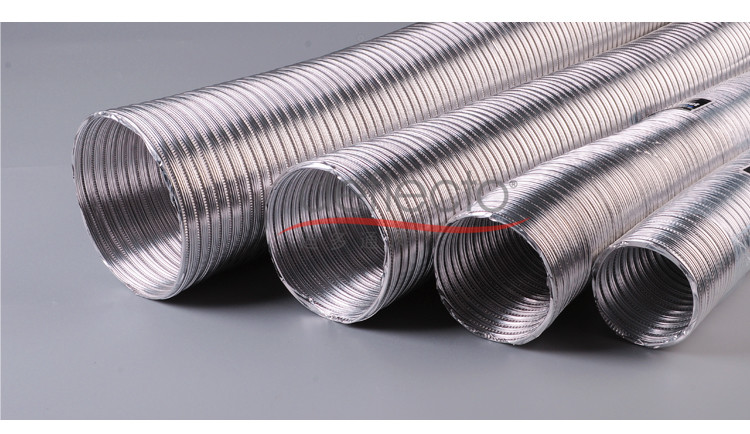

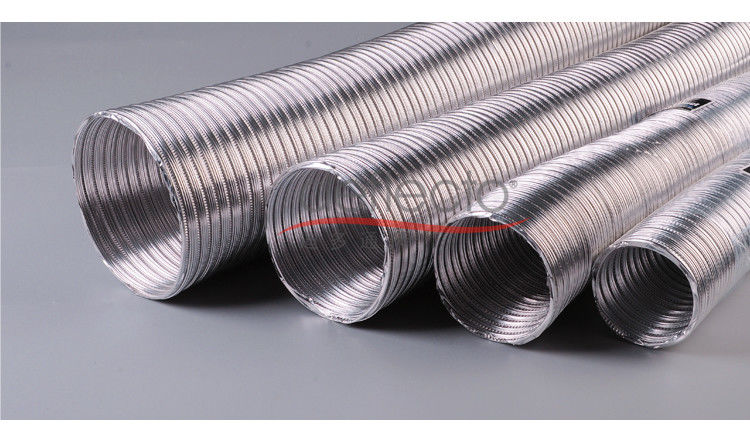

HVAC Systems Parts Semi Rigid Flexible Aluminum Pipe Fire Resistant Duct
General Inforamtion:
RECOMMENDED DUCT BY DRYER MANUFACTURERS FOR DRYER VENTING
• Pure aluminum metal duct
• 8 foot lengths compress to 28 inches
• 25 foot lengths compress to 88inches
• material description:
common name - aluminum alloy
trade name - aluminum alloy 3003
• a multiple use product, our semi-rigid flexible ducting can be used for exhaust venting, bathroom vents, clothes dryers.
Porformance Data :
For uninsulated aluminum flexible duct
Maximum Velocity
• 5000 FP M
Maximum Rated Pressures
• 3" - 8" dia., 6" w.g. Pos/Neg
Operating Temperature Range
• -100°F to 430°F
Class O Air Duct, Flexible
Flame Spread/Smoke Developed
• 0/0
Feature:
Diameter | 4'',100mm |
Length | 2 meters, 6.5 Ft per Pcs |
Thinckness | 0.08 mm |
Corrugation | 4 |
Package | Shrink Wrap and Master carton |
If there're any queries or other requests, Please feel free to contact.
